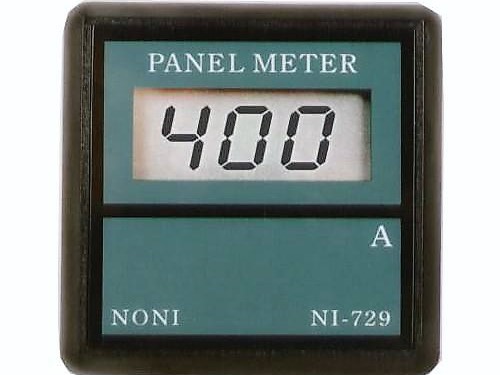

NI-729A電流表

LCD數字顯示精確易讀，安裝容易，提昇產品價值

工作電壓: 90~265V AC

精確度: +/-0.1%

解析度: 0.1

測定範圍: 5A (可對應 30/5¸50/5.75/5.100/5.150/5 C.T比)

取樣時間: 0.5sec

外觀尺寸: 72x72

開孔尺寸: 66x66

Voltage Digital Range 0~600VAC 0~600VDC

Current input 0~5A Compare C.T

L 30.0/5A 50.0/5A 75.0/5A 100.0/5A 150.0/5A

H 200/5A 250/5A 300/5A 400/5A

temperature Digital Range 0~600°C

Outside Dimension 72mm x 72mm

Connection Diagram 66mm x 66mm

LCD PANET METER Voltmeter .Ampere
